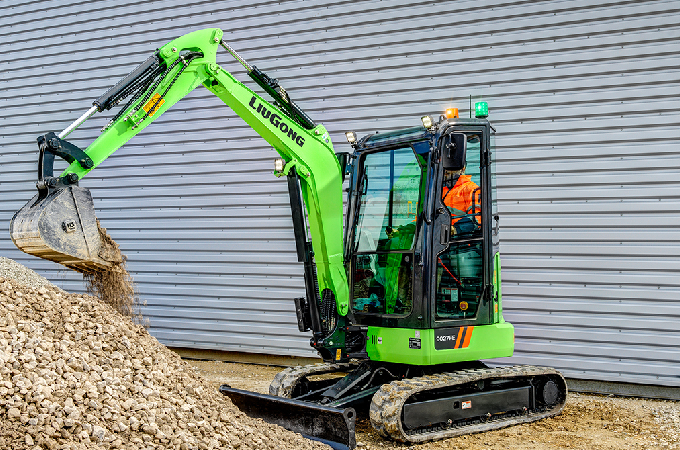

To justify the change to electric, BEVs must outperform conventional machines. Our new 922FE is all the justification you need. It’s a machine with proven performance in the areas you really care about.

FEATURES
Power & Battery Performance

Powered by a world-class SEM motor the 9027FE is proven to perform.

– Large capacity lithium iron phosphate battery

– Load sensing hydraulics

– Automatic shutdown function.

2. Plug & Play Simplicity

We help you change to electric by offering a simple a plug & play solution, perfectly matched to deliver the optimum performance, economy and safety.

– BEV machine

– Charging infrastructure

– Health and safety training and suppor

3. Intelligence & Control

Our intelligent, human centric design creates a superior operating experience.

– 5-inch touch screen display

– Intelligent battery management system

– Electronic proportional level

– Auxiliary flow and adjustable pressure

4. Safety & Comfort

Designed around the operator our cab provides the highest levels of safety, visibility and comfort.

– 48V System voltage

– Adjustable seat and armrest heights

– Micro-pressurized cab significantly reduces dust and noise and vibration

5. Environmentally Friendly

Heavyweight performance with environmental responsibility.

– Zero Fuel

– Zero Emissions

– Lower noise & vibrations

6. Low Maintenance

– Maintenance-free motor

– Maintenance-free battery

– Long life hydraulic oil

SPECIFICATIONS
Base
Motor Type Synchronous reluctance
Standard Bucket size 0.08 m³
Motor Rated Power 16.5 kW (22.13 hp)
Operating Weight 2,680 kg
Maximum Travel Speed 4.5 km/h
Electric System
Battery Type LFP
Rated Storage Energy 20.6 kW
Nominal Voltage 44.8 V
Indicative Runtime 2-5 h
Recommended Charger 120~300 kW
Charge Time 1.5 h/6 h
System Voltage 12 V
Charging Port DC/AC
Working Range
Max. Digging Reach 4,757 mm
Max. Digging Depth 2,857 mm
Transport Dimension
Shipping Length 4,160 mm
Shipping Width 1,500 mm
Shipping Height 2,450 mm
Wheel Track 1,250 mm
Hydraulic System
Main Pumps Total Flow 78.4 L/min (21 gal/min)
Relief Pressure, main 21.6 MPa
