FEATURES
With a load capacity of 60-70 metric tons

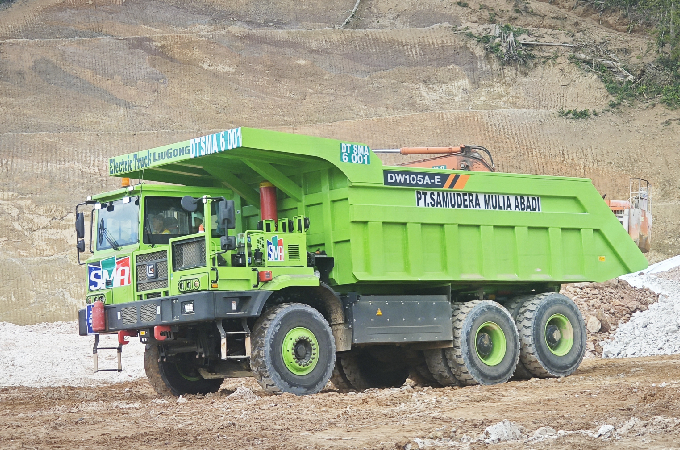

the Liugong truck meets the requirements of transport operations under the toughest conditions. The high-horsepower engine is unrivaled, the outstanding power match is energy-saving and fuel-efficient, the full hydraulic steering system is comfortable to operate, and the excellent braking performance guarantees safety. Supported by world-class spare parts, the Liugong Mining Truck has inherent reliability.

 It matches perfectly with our high-performance loaders and excavators, putting the fleet well ahead of the curve when it comes to heavy-duty transportation. No matter how harsh the environment is, they will overcome the obstacles and continue to improve profit per ton with better performance over longer distances!

SPECIFICATIONS
Base
Max. Gross Machine Weigh 109,500 kg
Net Machine Weight 39,500 kg
Payload 70,000 kg
Engine TZ380XSLG500A
Rated Power 500 kW (671 hp / 680 ps) @ 1,700 rpm
Struck Capacity 36 m³
Heaped Capacity (SAE 2:1) 43 m³
Drive Motor
Motor Type TZ380XSLG500A
Type PMSM
Platform Voltage 600 V
Rated / Peak Power 500 kW (671 hp / 679 ps) / 700 kW (939 hp / 952 ps)
Rated / Peak Torque 2,800 / 4,800 N·m
Rated / Peak Speed 1,700 / 3,500 rpm
Transmission
Model Fastgear 4E300
Gear and Speed Ratio 6.508 / 3.995 / 2.123 / 1
Retarder Type Electric retarder
Tire And Rim
Drive Type 6 x 4
6×4Tire Size 16.00R25
Rim 11.25/2.0-25
Dimensions
Overall Length 9,550 mm
Overall Width 3,700 mm
Overall Height 4,070 mm
